500mA LED STEP-DOWN CONVERTER
Application Information (cont.)
Soft-Start
An external capacitor from the CTRL pin to ground will provide a soft-start delay, by increasing the time taken for the voltage on this pin to
rise to the turn-on threshold and by slowing down the rate of rise of the control voltage at the input of the comparator. Adding capacitance
increases this delay by approximately 200μs/nF. The graph below shows the variation of soft-start time for different values of capacitor.
16
14
12
10
8
6
4
2
0
-2
0
20
40 60 80 100 120
CAPACITANCE (nf)

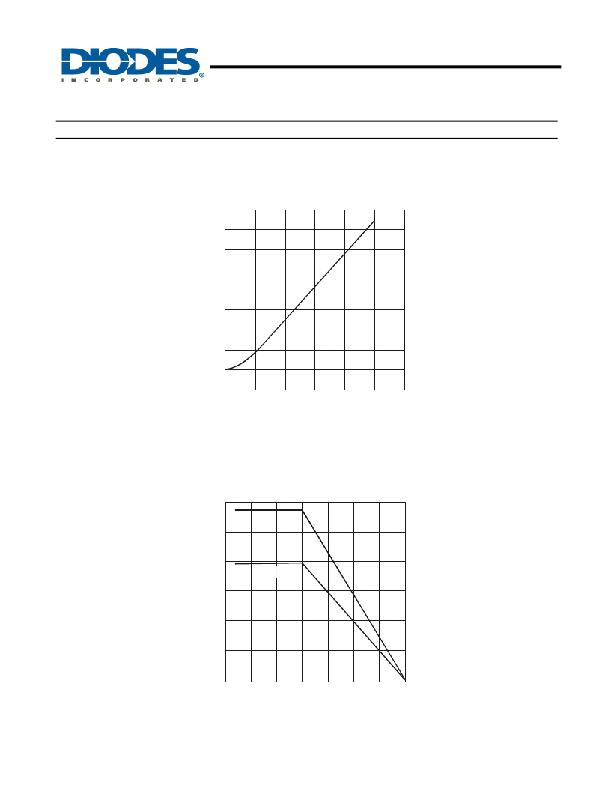

Figure. 19 Soft-Start Time vs. Capacitance
from ADJ Pin to Ground
Thermal Considerations
The graph below in figure 20, gives details for power derating. This assumes the device to be on a FR-4 PCB, 2”x2”, 2oz copper, minimum
recommended pad layout on top layer and thermal vias to bottom layer ground plane standing in still air.
1.2
SO-8
1.0
0.8
MSOP-8
0.6
0.4
0.2
0
-50
-25
0
25
50 75 100
125
AMBIENT TEMPERATURE (°C)
Figure. 20 Maximum Power Dissipation
AP8801
Document number: DS31765 Rev. 7 - 2
10 of 14
www.diodes.com
June 2012
? Diodes Incorporated
